# DOCUSIGNCHECK ## Overview The **DOCUSIGNCHECK** workflow application lets you check the status of an envelope and download its associated file, which is a concatenation of attached files. ## How it works * You can check the status of an envelope and download the file from DocuSign according to your status criteria.
* Application logs are available. These can be specified by setting the value of the `DocuSignCheckLogLevel` parameter in the `web.config` file to `0` to deactivate logs, `1` for error logs, `2` for information logs, or `3` for debug logs; the default value is `0`. ## Required parameter

Parameter	Type	Direction	Description
Parameter	Type	Direction	Description
`DOCUSIGN_ENVELOPE_ID`	TEXT	IN	DocuSign envelope ID to check

## Optional parameters ### DocuSign configuration There are two ways to configure DocuSign account information: you can define the configuration in the `web.config` file or in the Configuration Panel, or you can manage the configuration on each DOCUSIGNCHECK action. {% hint style="info" %} These parameters must be associated to a DocuSign account. {% endhint %} {% hint style="warning" %} It's necessary to have authorized your DocuSign application for use. To do this, go to the following address: `/oauth/auth?response_type=code&scope=signature%20impersonation&client_id=&redirect_uri=` * ``: `https://account.docusign.com` (production) or`https://account-d.docusign.com` (demo) * ``: Corresponds to your DocuSign application's `Integration Key` value * ``: Redirect address (e.g. `https://docusign.com`) {% endhint %}

Parameters	Type	Direction	Description
Parameters	Type	Direction	Description
`DOCUSIGN_CLIENT_ID`	TEXT	IN	DocuSign client ID Corresponds to your DocuSign application's `Integration Key` value By default, this value comes from the `DocuSignClientId` parameter in the `web.config`.
`DOCUSIGN_USER_GUID`	TEXT	IN	DocuSign user GUID Corresponds to the value of `User ID` in the DocuSign configuration panel By default, this value comes from the `DocuSignUserGuid` parameter in the `web.config`.
`DOCUSIGN_AUTH_SERVER`	TEXT	IN	DocuSign Auth server DocuSign values: `account.docusign.com` (production) `account-d.docusign.com` (demo) By default, this value comes from the `DocuSignAuthServer` parameter in the `web.config`.
`DOCUSIGN_RSA_KEY`	TEXT	IN	DocuSign RSA key By default, this value come from the `/Files/DocuSign/rsaKey.pem` file.
`DOCUSIGN_HOST_SERVER`	TEXT	IN	DocuSign host server DocuSign values: `https://docusign.net` (production) `https://demo.docusign.net` (demo) By default, this value comes from the `DocuSignHostServer` parameter in the `web.config`.

### General

Parameters	Type	Direction	Description
Parameters	Type	Direction	Description
`VALID_STATUS_LIST`	TEXT	IN	Valid status to download the document Default: `signed,completed,voided,declined`
`DOCUSIGN_DOCUMENT`	FILE	OUT	DocuSign document
`DOCUSIGN_STATUS`	TEXT	OUT	Envelope status

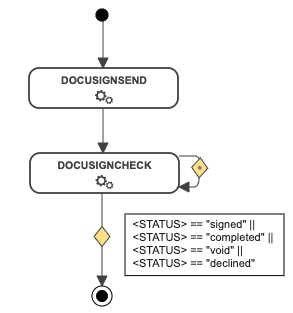

## Example with DOCUSIGNSEND In the following example, the [DOCUSIGNSEND](https://docs.workflowgen.com/admin/9.2/workflow-applications/docusign/docusignsend-workflow-application) action is directly followed by the DOCUSIGNCHECK action. This action will loop back on itself until the status changes to `signed`, `completed`, `voided`, or `declined`. If the status returned meets the condition, the document will be downloaded from DocuSign.

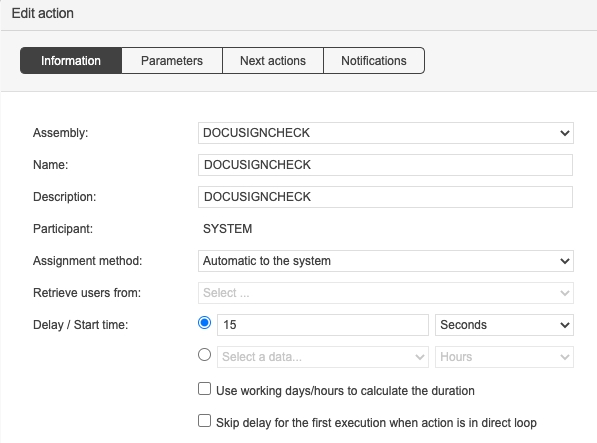

With the system loop action feature, the DOCUSIGNCHECK action will be executed every `x` seconds until the OUT condition is met.
