YOUSIGNSEND
Overview
The YOUSIGNSEND workflow application lets you send one or more documents to Yousign for electronic signature.
How it works
The YOUSIGNSEND application will create a unique envelope and send it to one or multiple signers.
You can specify one or multiple files per YOUSIGNSEND action. To do this, use the
FILEx
parameter, wherex
corresponds to the file number (e.gFILE1
). At least one file is required.You can specify one or multiple signers. To do this, use the combination of
SIGNER_FIRSTNAME_LIST
,SIGNER_LASTNAME_LIST
, andSIGNER_EMAIL_LIST
. You can also useSIGNER_FIRSTNAMEx
,SIGNER_LASTNAMEx
, andSIGNER_EMAILx
, wherex
corresponds to the signer number.Application logs are available. These can be specified by setting the value of the
YousignSendLogLevel
parameter in theweb.config
file to0
to deactivate logs,1
for error logs,2
for information logs, or3
for debug logs; the default value is0
.
Configuring the Yousign API
Create a Yousign API application

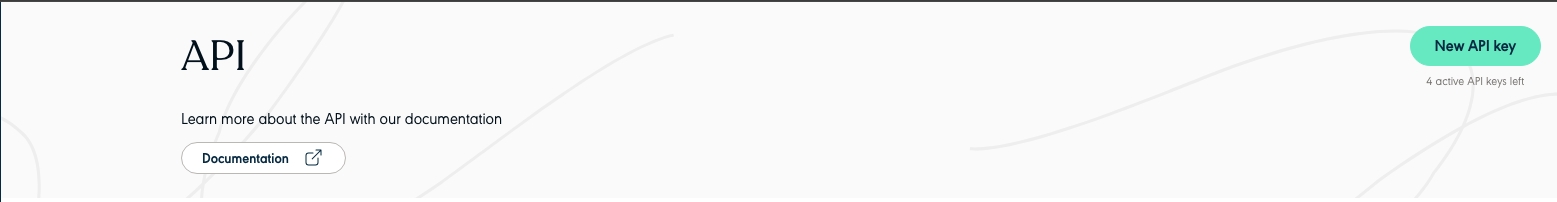

In the Yousign administration interface, click the Integrations tab, then select the API menu.
Click the New API key button.
Enter a description in the Description field. Select an environment (depending on your usage), then select Full-Access permissions.
Required parameters
You can use either of the following configurations: with a signers list or with signer numbers.
With a list of signers
Parameter
Type
Direction
Description
SIGNER_FIRSTNAME_LIST
TEXT
IN
First names of signers, separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_FIRSTNAME_LIST
TEXT
IN
Last names of signers, separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_EMAIL_LIST
TEXT
IN
Emails of signers, separated by the value defined in the DATA_SEPARATOR
parameter
FILEx
FILE
IN
File(s) to send, where x
corresponds to the file number; you can add one or multiple files
With signer numbers
Parameter
Type
Direction
Description
SIGNER_FIRSTNAMEx
TEXT
IN
First name(s) of signer(s), where x
corresponds to the signer number; you can add one or multiple signers
SIGNER_LASTNAMEx
TEXT
IN
Last name(s) of signer(s), where x
corresponds to the signer number; you can add one or multiple signers
SIGNER_EMAILx
TEXT
IN
Email(s) of signer(s), where x
corresponds to the signer number; you can add one or multiple signers
FILEx
FILE
IN
File(s) to send, where x
corresponds to the file number; you can add one or multiple files
Optional parameters
Yousign configuration
Parameter
Type
Direction
Description
YOUSIGN_API_KEY
TEXT
IN
Yousign API key
By default, this value comes from the YousignApiKey
parameter in the web.config
file.
YOUSIGN_HOST_SERVER
TEXT
IN
Yousign host server (e.g. https://api.yousign.app/v3
)
By default, this value comes from the YousignHostServer
parameter in the web.config
file.
General
Parameter
Type
Direction
Description
DATA_SEPARATOR
TEXT
IN
Separator used to separate the content of SIGNER_FIRSTNAME_LIST
, SIGNER_LASTNAME_LIST
, SIGNER_EMAIL_LIST
, SIGNER_PAGE_LIST
, SIGNER_X_POSITION_LIST
, SIGNER_Y_POSTION_LIST
, SIGNER_PHONE_LIST
, SIGNER_LOCAL_LIST
, and SIGNER_AUTH_MODE_LIST
Default : ,
(comma)
SIGNER_PAGE_LIST
TEXT
IN
Page to be signed by the signer(s), separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_PAGEX
TEXT
IN
Page to be signed by the signer, where x
corresponds to the signer number; you can add one or more signers
SIGNER_X_POSITION_LIST
TEXT
IN
X position of the signature area for the signer, separated by the value defined in the DATA_SEPARATOR
parameter
The value must be a positive numeric integer.
SIGNER_X_POSITIONX
TEXT
IN
X position of the signature area for the signer, where x
corresponds to the signer number
The value must be a positive numeric integer.
SIGNER_Y_POSITION_LIST
TEXT
IN
Y position of the signature area for the signer, separated by the value defined in the DATA_SEPARATOR
parameter
The value must be a positive numeric integer.
SIGNER_Y_POSITIONX
TEXT
IN
Y position of the signature area for the signer, where x
corresponds to the signer number
The value must be a positive numeric integer.
SIGNATURE_NAME
TEXT
IN
Name of the signature request
SIGNER_PHONE_LIST
TEXT
IN
Phone number of the signer(s), separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_PHONEX
TEXT
IN
Signer's phone number, where x
is the signer number.
SIGNER_LOCALE_LIST
TEXT
IN
Location of the signer(s), separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_LOCALEX
TEXT
IN
Location of the signer, where x
is the signer number
SIGNER_AUTH_MODE_LIST
TEXT
IN
Authentication mode of the signer(s), separated by the value defined in the DATA_SEPARATOR
parameter
SIGNER_AUTH_MODEX
TEXT
IN
Signer authentication mode, where x
is the signer number
Default: no_otp
FILE_NATUREX
TEXT
IN
Nature of the document of the file to send, where x
corresponds to the signer number
Default: signable_document
SIGNATURE_WIDTH
TEXT
IN
Signature field width in pixels
Default: 25
SIGNATURE_HEIGHT
TEXT
IN
Signature field height in pixels
Default: 37
Return parameter
Parameter
Type
Direction
Description
YOUSIGN_SIGNATURE_ID
TEXT
OUT
Contains the Yousign signature ID; you can use this ID in the YOUSIGNCHECK workflow application
Examples
With a list of signers
Parameter
Type
Direction
Value
SIGNER_FIRSTNAME_LIST
TEXT
IN
John,Bernard
SIGNER_FIRSTNAME_LIST
TEXT
IN
Bridges,Martin
SIGNATURE_NAME
TEXT
IN
Signature on a contract
SIGNER_PAGE_LIST
TEXT
IN
1,2
SIGNER_X_POSITION_LIST
TEXT
IN
100,100
SIGNER_Y_POSITION_LIST
TEXT
IN
100,100
FILE1
FILE
IN
contract.pdf
YOUSIGN_SIGNATURE_ID
TEXT
OUT
xxxxx-xxxxx-xxxxx-xxxxx
With signer numbers
Parameter
Type
Direction
Value
SIGNER_FIRSTNAME1
TEXT
IN
John
SIGNER_LASTNAME1
TEXT
IN
Bridges
SIGNER_FIRSTNAME2
TEXT
IN
Bernard
SIGNER_LASTNAME2
TEXT
IN
Martin
SIGNATURE_NAME
TEXT
IN
Signature on a contract
SIGNER_PAGE1
TEXT
IN
1
SIGNER_PAGE2
TEXT
IN
2
SIGNER_X_POSITION1
TEXT
IN
100
SIGNER_X_POSITION2
TEXT
IN
100
SIGNER_Y_POSITION1
TEXT
IN
100
SIGNER_Y_POSITION2
TEXT
IN
100
FILE1
FILE
IN
contract.pdf
YOUSIGN_SIGNATURE_ID
TEXT
OUT
xxxxx-xxxxx-xxxxx-xxxxx
